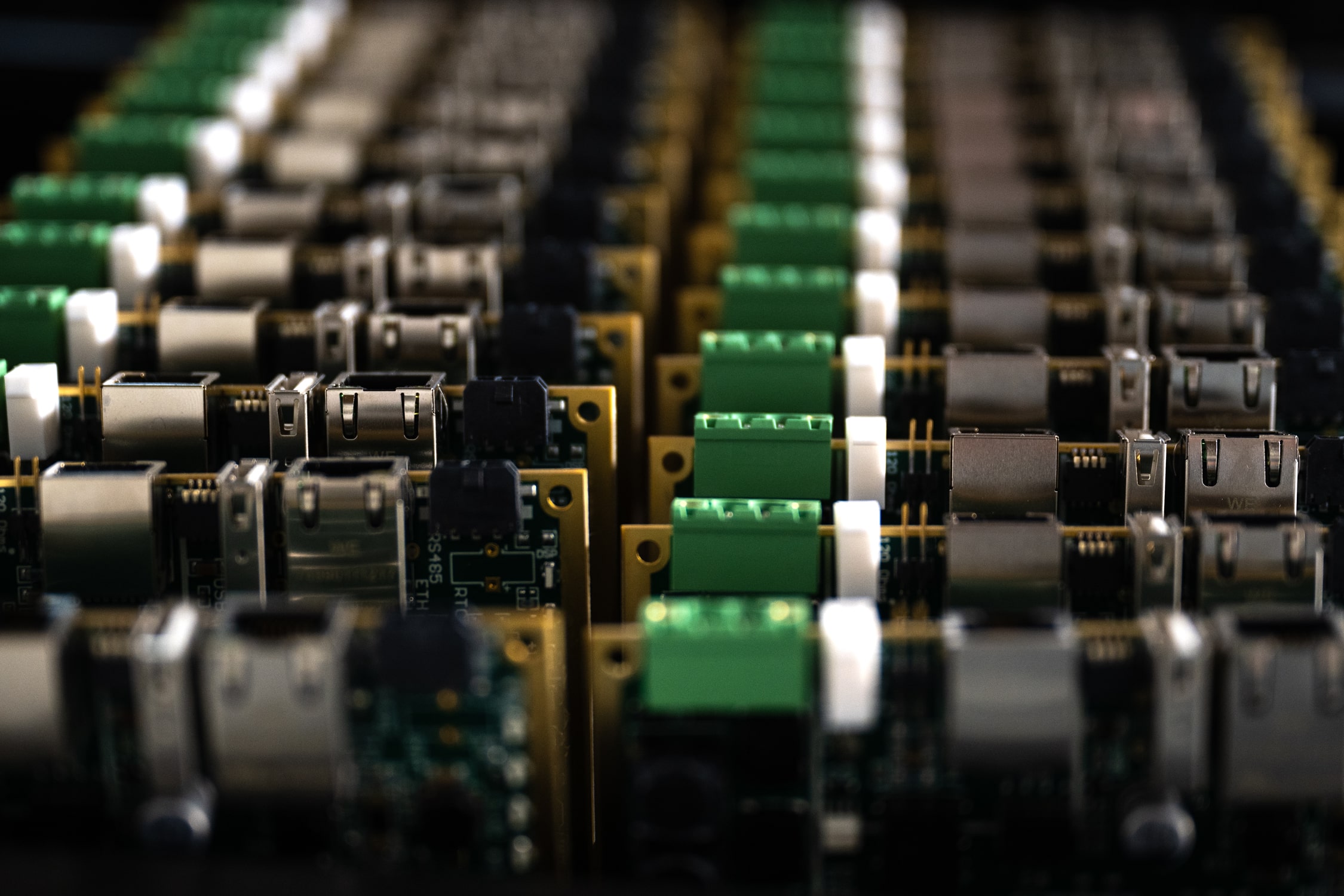

Our Supply Equipment Communication Controller (SECC) for DC charging acts as the main controller for the charging process. Unlike comparable SECC on the market, our SECC directly integrates an insulation monitoring device (IMD), making it a compact and reliable choice for customers seeking an efficient architecture.
A made in France technology for fast charging and bidirectional charging (V2G)
Featuring OCPP 1.6 and 2.0.1, our state-of-the-art SECC for DC Charging boasts a simple architecture that facilitates quick and easy integration. Additionally, it’s fully compatible with the latest and future CPO management systems and supports secure identification means, such as AutoCharge and Plug&Charge, enabling contactless payment and user authentication. It is widely interoperable with EVs thanks to all the required signals for CCS (DIN70121, ISO15118-2 and ISO15118- 20), MCS (Megawatt Charging System, according to IEC 61851-23-3) and CHAdeMO (via extension board).
Furthermore, our SECC for DC Charging includes a security element for cybersecurity. It seamlessly integrates with existing customer code.
A powerful processor runs the EV communication stack, the IMD, voltage measurement, plus other demanding applications (OCPP, EVSE master, etc.).
An optional extension board (EVIX) is available if you want to implement additional functions, such as:
- Addressing >6 Power Units (up to 14 MPU-R3 or 16 BMPU-R2) ;
- CHAdeMO interface ;
- IOs and additional peripherals: analog inputs, 4G access, PWM outputs, LEDs, extra CAN bus.
Designed for smart grid applications, its modular conception makes it capable of controlling multiple independent charge points (CHAdeMO & CCS), and up to 14 MPU-R3 Power Units in a high-power system of 350 kW.
SEE THE DATASHEETEU DECLARATION OF CONFORMITY
GRAPHICAL USER INTERFACE USER MANUALGETTING STARTED MANUAL
-
Key features of our SECC
- CCS controller: PLC, PnC, DIN 70121, ISO 15118-2, ISO 15118-20 including BPT
- MCS (Megawatt Charging System) controller according to IEC 61851-23-3 via extension board
- CHAdeMO compatible (via extension board): Version 0.9 & 1.2, including BPT
- Insulation Measurement Device (IMD) according IEC61557-8, with active load balancing for MCS
- High Voltage charging up to 920V, and 1250V for MCS
- Chipset (microcontroller based) for safety and IEC 61851 functions
- CryptoReady with integrated secure crypto processor. Compatible with PnC and AutoCharge
- Cable temperature measurement
- CANopen, ModBus TCP with advanced control, monitoring and logging capabilities
